Introduction

In the fast-paced world of game development, creating an immersive and engaging player experience is paramount. For many action, RPG, and adventure games, a well-implemented lock-on targeting system is not just a feature; it’s a necessity. It allows players to focus on combat strategy rather than wrestling with camera controls, providing a fluid and satisfying gameplay loop. Think of the iconic lock-on mechanics in titles like The Legend of Zelda: Ocarina of Time, Dark Souls, or Monster Hunter – these systems empower players, making intricate battles feel intuitive and impactful.

A lock-on targeting system typically involves the player character automatically facing or tracking a selected enemy, often accompanied by visual feedback on the target and adjustments to the game camera. This guide will delve deep into the mechanics of building such a system in Unity, covering everything from target acquisition and camera adjustments to UI feedback and advanced considerations. Whether you’re a beginner looking to add a fundamental combat mechanic or an intermediate developer aiming to refine your game’s feel, this comprehensive walkthrough will equip you with the knowledge and code examples to implement a robust and polished lock-on targeting system in your Unity projects.

The Core Mechanics of Lock-On Targeting

At its heart, a lock-on targeting system involves three primary components: identifying potential targets, selecting a target, and maintaining the lock. Each of these stages requires careful design and implementation to ensure a seamless player experience.

Identifying Potential Targets

Before a player can lock onto an enemy, the system needs to know which enemies are available. This typically involves a method of detecting enemies within a certain range or field of view of the player. Common approaches include using physics-based detection (e.g., SphereCast, OverlapSphere), or iterating through a list of active enemies and checking their distance and angle relative to the player or camera.

Physics-Based Detection:

Using Physics.OverlapSphere or Physics.SphereCast is an efficient way to find potential targets within a spherical radius. This is particularly useful for games where the player might be surrounded by multiple enemies.

using UnityEngine;
using System.Collections.Generic;

public class TargetDetector : MonoBehaviour
{
    [SerializeField] private float detectionRadius = 20f;
    [SerializeField] private LayerMask targetLayer;
    [SerializeField] private Transform playerCameraTransform;
    [SerializeField] private float fieldOfViewAngle = 90f; // Angle in degrees

    public List<GameObject> FindPotentialTargets()
    {
        List<GameObject> potentialTargets = new List<GameObject>();
        Collider[] hitColliders = Physics.OverlapSphere(transform.position, detectionRadius, targetLayer);

        foreach (var hitCollider in hitColliders)
        {
            // Check if the target is within the camera's field of view
            Vector3 directionToTarget = (hitCollider.transform.position - playerCameraTransform.position).normalized;
            if (Vector3.Angle(playerCameraTransform.forward, directionToTarget) < fieldOfViewAngle / 2)
            {
                potentialTargets.Add(hitCollider.gameObject);
            }
        }
        return potentialTargets;
    }

    void OnDrawGizmosSelected()
    {
        Gizmos.color = Color.yellow;
        Gizmos.DrawWireSphere(transform.position, detectionRadius);
    }
}

This TargetDetector script, when attached to your player character, uses OverlapSphere to find all colliders on the targetLayer within detectionRadius. It then refines this list by checking if the targets are within the player camera’s fieldOfViewAngle, ensuring that only visible enemies are considered. This is crucial for preventing players from locking onto enemies behind walls or out of sight.

Internal Linking Opportunity: For more advanced physics interactions in Unity, consider exploring our guide on Unity physics tips.

Selecting a Target

Once potential targets are identified, the system needs a mechanism for the player to select one. This can be automatic (e.g., closest enemy) or manual (e.g., cycling through targets, mouse click). The most common methods include:

• Closest Target: Automatically locks onto the nearest enemy within the detection radius. This is simple but can be frustrating if the closest enemy isn’t the desired one.
• Camera-Based Selection: Locks onto the enemy closest to the center of the screen. This is intuitive for many players as it aligns with their visual focus.
• Cycling Through Targets: Allows the player to press a button to cycle through available targets. This offers more control but can be cumbersome with many enemies.

For a robust system, a combination of these methods is often best. For instance, an initial lock-on to the closest or center-screen enemy, with an option to cycle through others.

using UnityEngine;
using System.Collections.Generic;
using System.Linq;

public class TargetSelector : MonoBehaviour
{
    [SerializeField] private TargetDetector targetDetector;
    [SerializeField] private Transform playerCameraTransform;
    [SerializeField] private float maxLockOnDistance = 25f;

    public GameObject CurrentTarget { get; private set; }
    private List<GameObject> availableTargets = new List<GameObject>();
    private int currentTargetIndex = -1;

    void Update()
    {
        // Example: Manual target cycling (e.g., pressing 'Tab')
        if (Input.GetKeyDown(KeyCode.Tab))
        {
            CycleTarget();
        }

        // Clear target if it's too far or destroyed
        if (CurrentTarget != null &&
            (Vector3.Distance(transform.position, CurrentTarget.transform.position) > maxLockOnDistance ||
             CurrentTarget.activeSelf == false))
        {
            ClearTarget();
        }
    }

    public void CycleTarget()
    {
        availableTargets = targetDetector.FindPotentialTargets();
        if (availableTargets.Count == 0)
        {
            ClearTarget();
            return;
        }

        // Remove current target if it's no longer available
        if (CurrentTarget != null && !availableTargets.Contains(CurrentTarget))
        {
            ClearTarget();
        }

        if (CurrentTarget == null)
        {
            // If no current target, select the one closest to the camera center
            CurrentTarget = GetClosestTargetToCameraCenter(availableTargets);
            if (CurrentTarget != null)
            {
                currentTargetIndex = availableTargets.IndexOf(CurrentTarget);
            }
        }
        else
        {
            // Cycle to the next target
            currentTargetIndex = (currentTargetIndex + 1) % availableTargets.Count;
            CurrentTarget = availableTargets[currentTargetIndex];
        }

        Debug.Log($"Locked on to: {CurrentTarget?.name}");
    }

    private GameObject GetClosestTargetToCameraCenter(List<GameObject> targets)
    {
        GameObject bestTarget = null;
        float minAngle = float.MaxValue;

        foreach (var target in targets)
        {
            Vector3 screenPoint = playerCameraTransform.GetComponent<Camera>().WorldToViewportPoint(target.transform.position);
            // Check if target is in front of camera and within screen bounds
            if (screenPoint.z > 0 && screenPoint.x > 0 && screenPoint.x < 1 && screenPoint.y > 0 && screenPoint.y < 1)
            {
                Vector3 directionToTarget = (target.transform.position - playerCameraTransform.position).normalized;
                float angle = Vector3.Angle(playerCameraTransform.forward, directionToTarget);
                if (angle < minAngle)
                {
                    minAngle = angle;
                    bestTarget = target;
                }
            }
        }
        return bestTarget;
    }

    public void ClearTarget()
    {
        CurrentTarget = null;
        currentTargetIndex = -1;
        Debug.Log("Target cleared.");
    }
}

Maintaining the Lock

Once a target is selected, the system needs to maintain the lock, which typically involves two main aspects: camera control and player character orientation.

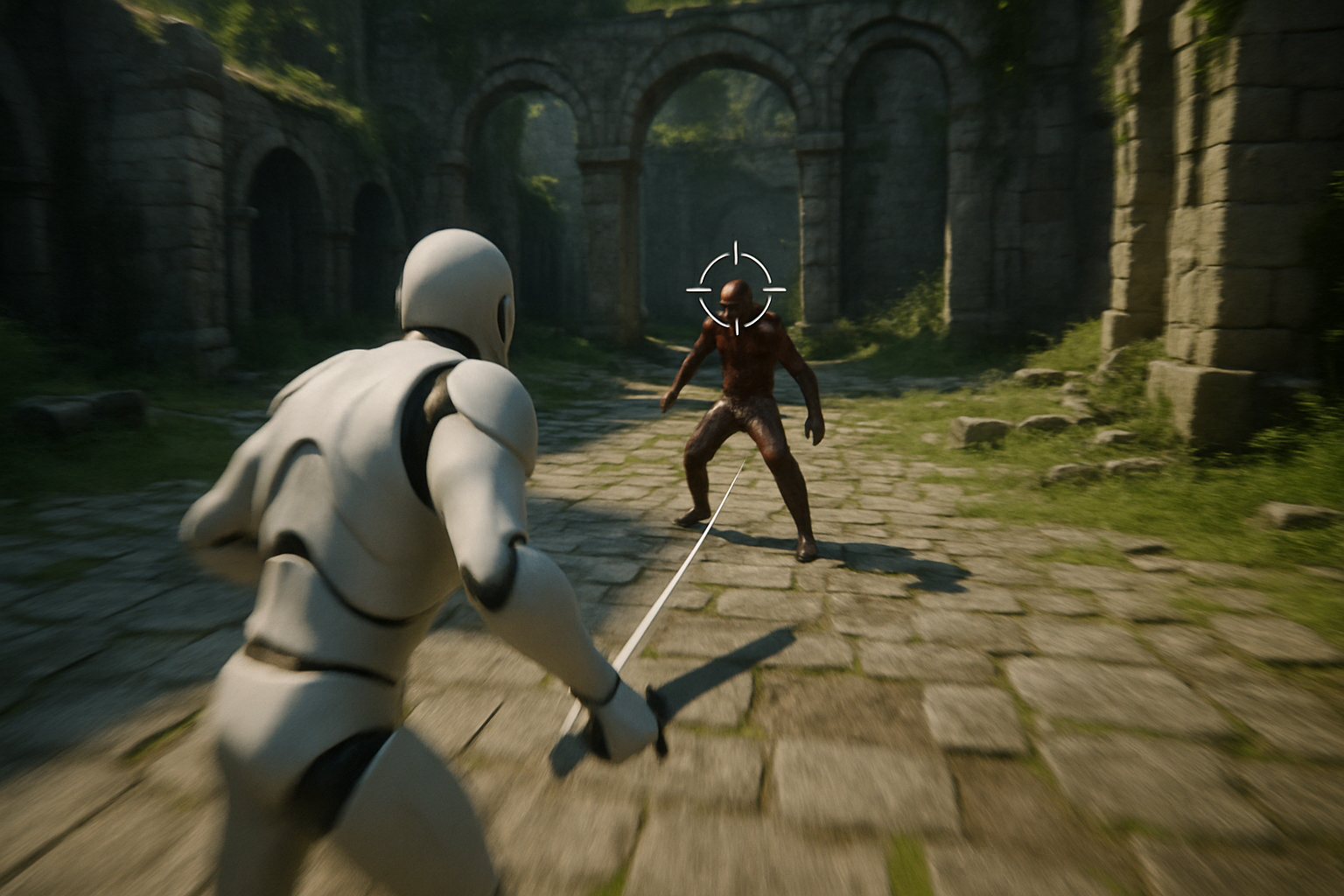

Camera Control:

For a satisfying lock-on experience, the camera should smoothly follow the target, keeping it in view while still allowing the player some control over their character’s movement. Cinemachine, Unity’s powerful camera system, is an excellent tool for this. You can use a CinemachineFreeLook or CinemachineVirtualCamera with a LookAt target set to the locked-on enemy.

using UnityEngine;
using Cinemachine;

public class LockOnCamera : MonoBehaviour
{
    [SerializeField] private TargetSelector targetSelector;
    [SerializeField] private CinemachineFreeLook freeLookCamera;
    [SerializeField] private CinemachineVirtualCamera virtualCamera;
    [SerializeField] private float cameraTransitionTime = 0.5f;

    void Update()
    {
        if (targetSelector.CurrentTarget != null)
        {
            // If using CinemachineFreeLook (e.g., for third-person games)
            if (freeLookCamera != null)
            {
                freeLookCamera.LookAt = targetSelector.CurrentTarget.transform;
                freeLookCamera.m_XAxis.m_MaxSpeed = 0; // Disable horizontal camera movement
                freeLookCamera.m_YAxis.m_MaxSpeed = 0; // Disable vertical camera movement
            }
            // If using CinemachineVirtualCamera (e.g., for fixed camera angles)
            else if (virtualCamera != null)
            {
                virtualCamera.LookAt = targetSelector.CurrentTarget.transform;
            }
        }
        else
        {
            // Re-enable camera movement when no target is locked
            if (freeLookCamera != null)
            {
                freeLookCamera.LookAt = null; // Or set back to player
                freeLookCamera.m_XAxis.m_MaxSpeed = 300; // Restore default speed
                freeLookCamera.m_YAxis.m_MaxSpeed = 2;   // Restore default speed
            }
            else if (virtualCamera != null)
            {
                virtualCamera.LookAt = null; // Or set back to player
            }
        }
    }
}

Player Character Orientation:

Often, when locked on, the player character should automatically face the target. This can be achieved by rotating the player towards the target’s position. However, it’s important to balance this with player input to avoid making the character feel unresponsive.

using UnityEngine;

public class PlayerOrientation : MonoBehaviour
{
    [SerializeField] private TargetSelector targetSelector;
    [SerializeField] private float rotationSpeed = 10f;

    void Update()
    {
        if (targetSelector.CurrentTarget != null)
        {
            Vector3 directionToTarget = (targetSelector.CurrentTarget.transform.position - transform.position).normalized;
            directionToTarget.y = 0; // Keep rotation on the horizontal plane

            if (directionToTarget != Vector3.zero)
            {
                Quaternion targetRotation = Quaternion.LookRotation(directionToTarget);
                transform.rotation = Quaternion.Slerp(transform.rotation, targetRotation, rotationSpeed * Time.deltaTime);
            }
        }
    }
}

External Authoritative Link: For a deeper dive into Cinemachine, refer to the official Unity Cinemachine documentation.

Visual and Audio Feedback

Effective feedback is crucial for a good user experience. Players need clear visual and audio cues to understand when they have successfully locked onto a target, which target is currently selected, and when the lock is lost.

UI Indicators

Visual indicators are perhaps the most important form of feedback. This can include:

• Target Reticle: A UI element (e.g., a circle or crosshair) that appears over the locked-on enemy.
• Health Bars/Information: Displaying the target’s health or other relevant information.
• Highlighting: Changing the color or adding an outline to the target model.

using UnityEngine;
using UnityEngine.UI;

public class TargetUI : MonoBehaviour
{
    [SerializeField] private TargetSelector targetSelector;
    [SerializeField] private GameObject targetReticlePrefab;
    [SerializeField] private Canvas uiCanvas;
    [SerializeField] private Vector3 reticleOffset = new Vector3(0, 1.5f, 0); // Offset above target

    private GameObject currentReticle;

    void Update()
    {
        if (targetSelector.CurrentTarget != null)
        {
            if (currentReticle == null)
            {
                currentReticle = Instantiate(targetReticlePrefab, uiCanvas.transform);
            }
            // Position the reticle above the target in screen space
            Vector3 screenPosition = Camera.main.WorldToScreenPoint(targetSelector.CurrentTarget.transform.position + reticleOffset);
            currentReticle.transform.position = screenPosition;

            // Ensure reticle is visible
            currentReticle.SetActive(true);
        }
        else
        {
            if (currentReticle != null)
            {
                currentReticle.SetActive(false);
            }
        }
    }

    void OnDestroy()
    {
        if (currentReticle != null)
        {
            Destroy(currentReticle);
        }
    }
}

Internal Linking Opportunity: Enhance your game’s visual appeal with our Best Unity assets for mobile games guide, which includes UI asset packs.

Audio Cues

Subtle audio cues can significantly enhance the player’s awareness. A distinct sound effect for locking on and another for losing the lock provides immediate feedback without cluttering the screen.

using UnityEngine;

public class LockOnAudio : MonoBehaviour
{
    [SerializeField] private TargetSelector targetSelector;
    [SerializeField] private AudioClip lockOnSound;
    [SerializeField] private AudioClip lockOffSound;
    [SerializeField] private AudioSource audioSource;

    private GameObject lastTarget;

    void Start()
    {
        if (audioSource == null)
        {
            audioSource = GetComponent<AudioSource>();
            if (audioSource == null)
            {
                audioSource = gameObject.AddComponent<AudioSource>();
            }
        }
    }

    void Update()
    {
        if (targetSelector.CurrentTarget != null && lastTarget == null)
        {
            // Locked on to a new target
            audioSource.PlayOneShot(lockOnSound);
        }
        else if (targetSelector.CurrentTarget == null && lastTarget != null)
        {
            // Lost lock on target
            audioSource.PlayOneShot(lockOffSound);
        }
        lastTarget = targetSelector.CurrentTarget;
    }
}

Advanced Considerations and Best Practices

Building a basic lock-on system is a great start, but a truly polished system requires addressing more advanced scenarios and optimizing for performance and user experience.

Handling Multiple Targets and Prioritization

In scenarios with many enemies, deciding which target to lock onto becomes critical. You might want to prioritize:

• Threat Level: Lock onto the most dangerous enemy first.
• Distance: Closest enemy (as implemented in TargetSelector).
• Player Facing Direction: Enemy directly in front of the player.
• Health: Target the weakest enemy to finish them off quickly.

Implementing a scoring system for potential targets can help in automatic prioritization. Each target could be assigned a score based on distance, threat, and angle to the player, and the system locks onto the highest-scoring target.

Soft Lock vs. Hard Lock

• Hard Lock: The camera and player are rigidly fixed on the target. This is common in games like Dark Souls where precise movement relative to the enemy is key.
• Soft Lock: The camera provides a strong suggestion towards the target, but the player retains more freedom of movement and camera control. This is often seen in third-person shooters where players might want to quickly switch targets or aim at specific body parts.

Your design choice between soft and hard lock will heavily influence the camera and player orientation logic. For a soft lock, you might use Quaternion.Slerp with a lower rotationSpeed for player orientation and allow the Cinemachine camera to have some m_XAxis.m_MaxSpeed and m_YAxis.m_MaxSpeed even when locked on.

Performance Optimization

• Layer Masks: Use LayerMask for physics queries to avoid unnecessary computations.
• Caching: Cache references to components and game objects instead of using GetComponent or FindObjectOfType repeatedly in Update.
• Target Pooling: If enemies are frequently spawned and destroyed, consider using object pooling to reduce garbage collection overhead.
• Update Frequency: For target detection, consider running the FindPotentialTargets method less frequently (e.g., every 0.1 or 0.2 seconds) instead of every frame, especially if there are many potential targets.

Edge Cases and User Experience

• Target Obscured: What happens if the target goes behind an obstacle? The system should ideally lose lock or provide a visual cue that the target is obscured.
• Target Destroyed: The system must immediately clear the lock if the target is destroyed.
• Multiple Players: In multiplayer games, ensure the lock-on system works correctly for each player.
• UI Clutter: Avoid too many UI indicators, especially in busy combat scenarios. Keep feedback concise and clear.

Conclusion

A well-crafted lock-on targeting system can significantly elevate the gameplay experience in your Unity project, making combat more engaging and accessible. By understanding the core mechanics of target detection, selection, and maintenance, along with implementing clear visual and audio feedback, you can create a system that feels intuitive and responsive.

Remember to consider the nuances of camera control, player orientation, and performance optimization to ensure your system is not only functional but also polished. Experiment with different approaches, such as soft versus hard lock, and prioritize targets based on your game’s specific needs. Continuous testing and iteration will be key to refining your lock-on system to perfection.

As you continue to develop your Unity games, integrating thoughtful mechanics like a lock-on system demonstrates attention to detail and a commitment to player satisfaction. This foundational element can be expanded upon with advanced features like target weak points, combo systems, or even environmental targeting, opening up new layers of strategic depth.

Call to Action: Ready to empower your players with precise control? Implement a lock-on targeting system in your next Unity project and share your innovative approaches with the developer community! What unique challenges did you face, and how did you overcome them?

---

References

1. Unity Cinemachine Documentation
2. Unity Physics API
