Introduction
In today’s diverse gaming landscape, your Unity game needs to look stunning whether it’s running on a smartphone, tablet, desktop monitor, or even a massive 4K display. Screen resolution and UI scaling challenges can make or break the user experience, turning what should be an immersive game into a frustrating exercise in squinting at tiny buttons or dealing with pixelated interfaces.
Unity’s UI system provides powerful tools to handle these challenges, but mastering them requires understanding the underlying principles of responsive design, Canvas scaling, and resolution-independent layouts. This comprehensive guide will walk you through everything you need to know about handling screen resolution and UI scaling in Unity, from basic concepts to advanced techniques that ensure your game looks professional across every device.
Whether you’re building a mobile puzzle game that needs to work on both phones and tablets, or a PC strategy game that must accommodate everything from 1080p to ultrawide monitors, this guide will equip you with the knowledge and practical skills to create truly responsive Unity UIs.
Understanding Unity’s UI System and Resolution Challenges
Before diving into solutions, it’s crucial to understand why screen resolution and UI scaling present such significant challenges in game development. Unlike traditional desktop applications that can rely on operating system-level scaling, games often need pixel-perfect control over their presentation while simultaneously adapting to wildly different screen sizes and pixel densities.
Unity’s UI system, built around the Canvas component, provides a sophisticated framework for addressing these challenges. The Canvas acts as the root container for all UI elements, and its scaling behavior determines how your interface adapts to different screen resolutions. Understanding the relationship between Canvas settings, screen resolution, and UI element positioning is fundamental to creating responsive designs.
The core challenge lies in balancing three competing requirements: maintaining visual consistency across devices, ensuring UI elements remain appropriately sized for interaction, and preserving the artistic vision of your game’s interface design. A button that looks perfect on a 1920×1080 desktop monitor might become impossibly small on a mobile device, while a UI designed for mobile might appear comically oversized on a large desktop display.
Modern devices present an additional complexity through varying pixel densities. A high-DPI mobile device might have more pixels than a desktop monitor despite having a much smaller physical screen. This means that naive pixel-based scaling approaches often fail, requiring more sophisticated solutions that consider both resolution and physical display characteristics.

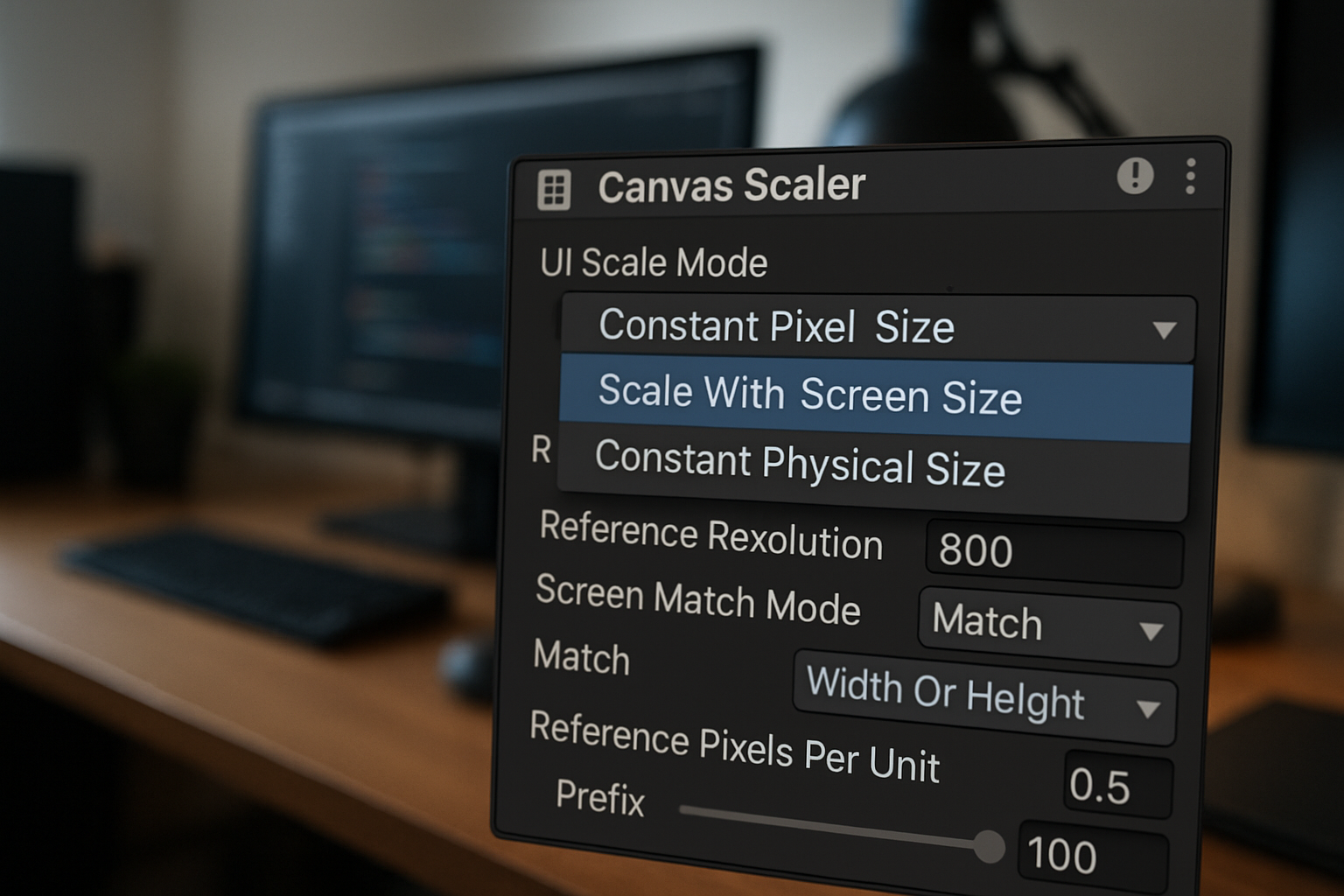

Canvas Scaler: Your Foundation for Responsive UI
The Canvas Scaler component serves as the cornerstone of Unity’s resolution-independent UI system. This powerful component provides three distinct scaling modes, each designed for different use cases and offering unique advantages for handling screen resolution variations.
Constant Pixel Size Mode
The Constant Pixel Size mode represents the simplest approach to UI scaling, where UI elements maintain their exact pixel dimensions regardless of screen resolution. While this might seem counterintuitive for responsive design, it serves specific purposes in certain game types.
In this mode, a button that measures 100×50 pixels will always occupy exactly 100×50 pixels on screen, regardless of whether the game is running on a 1920×1080 monitor or a 3840×2160 4K display. This approach works well for games where pixel-perfect precision is more important than consistent relative sizing, such as certain retro-style games or applications where maintaining exact pixel relationships is crucial for visual fidelity.
However, Constant Pixel Size mode presents significant challenges for cross-platform development. UI elements that appear appropriately sized on a desktop monitor will become increasingly small on higher-resolution displays, potentially making them difficult or impossible to interact with on mobile devices or high-DPI screens.
// Example: Detecting when UI elements might be too small in Constant Pixel Size mode
public class UIScaleDetector : MonoBehaviour
{
[SerializeField] private Canvas canvas;
[SerializeField] private float minimumButtonSize = 44f; // Minimum recommended touch target size
void Start()
{
CheckUIScaling();
}
void CheckUIScaling()
{
float scaleFactor = canvas.scaleFactor;
float effectiveButtonSize = minimumButtonSize * scaleFactor;
if (effectiveButtonSize < 44f)
{
Debug.LogWarning($"UI elements may be too small for comfortable interaction. " +
$"Effective size: {effectiveButtonSize}px");
}
}
}Scale With Screen Size Mode
Scale With Screen Size mode represents the most commonly used and versatile approach for responsive Unity UIs. This mode allows you to define a reference resolution that serves as your design baseline, with Unity automatically scaling all UI elements to maintain consistent relative proportions across different screen resolutions.
When using Scale With Screen Size mode, you specify a reference resolution (such as 1920×1080) that represents your target design dimensions. Unity then calculates a scale factor based on the relationship between your reference resolution and the actual screen resolution, ensuring that UI elements maintain their intended proportional relationships regardless of the target device.
The power of this approach lies in its ability to preserve the visual hierarchy and spatial relationships of your UI design while adapting to different screen sizes. A button that occupies 10% of the screen width in your reference resolution will continue to occupy approximately 10% of the screen width on other resolutions, maintaining both visual consistency and usability.
// Example: Dynamic reference resolution adjustment based on device type
public class AdaptiveCanvasScaler : MonoBehaviour
{
[SerializeField] private CanvasScaler canvasScaler;
[SerializeField] private Vector2 mobileReferenceResolution = new Vector2(1080, 1920);
[SerializeField] private Vector2 desktopReferenceResolution = new Vector2(1920, 1080);
void Start()
{
AdjustReferenceResolution();
}
void AdjustReferenceResolution()
{
if (Application.isMobilePlatform)
{
canvasScaler.referenceResolution = mobileReferenceResolution;
canvasScaler.matchWidthOrHeight = 0f; // Match width for portrait mobile
}
else
{
canvasScaler.referenceResolution = desktopReferenceResolution;
canvasScaler.matchWidthOrHeight = 0.5f; // Balance width and height for desktop
}
}
}The Match Width or Height slider in Scale With Screen Size mode provides fine-tuned control over how Unity handles aspect ratio differences. When set to 0, Unity prioritizes matching the width of your reference resolution, which works well for portrait-oriented mobile games. When set to 1, Unity prioritizes height matching, suitable for landscape-oriented games. A value of 0.5 provides a balanced approach that considers both dimensions equally.
Constant Physical Size Mode
Constant Physical Size mode takes a radically different approach by attempting to maintain consistent physical dimensions across different devices, regardless of their pixel density or resolution. This mode uses device-reported DPI (dots per inch) information to calculate appropriate scaling factors that result in UI elements occupying similar physical space on different screens.
While theoretically appealing, Constant Physical Size mode faces practical limitations due to inconsistent or inaccurate DPI reporting across different devices and platforms. Many devices report incorrect DPI values, leading to unpredictable scaling behavior that can make UI elements too large or too small for comfortable interaction.
This mode works best in controlled environments where you have specific knowledge about target devices and can verify DPI accuracy. For most game development scenarios, Scale With Screen Size mode provides more predictable and controllable results.
Advanced Canvas Scaler Techniques and Best Practices
Mastering Canvas Scaler requires understanding not just the basic modes, but also the nuanced ways these settings interact with different screen configurations and device types. Advanced developers often employ dynamic scaling strategies that adapt Canvas Scaler settings based on runtime conditions, device capabilities, and user preferences.
Dynamic Reference Resolution Adjustment
One powerful technique involves adjusting the reference resolution dynamically based on the detected device characteristics or user preferences. This approach allows you to optimize the UI experience for different device categories while maintaining a single codebase.
public class SmartCanvasScaler : MonoBehaviour
{
[System.Serializable]
public class ResolutionProfile
{
public string profileName;
public Vector2 referenceResolution;
public float matchWidthOrHeight;
public float scaleFactor = 1f;
}
[SerializeField] private CanvasScaler canvasScaler;
[SerializeField] private ResolutionProfile[] profiles;
[SerializeField] private bool adaptToDeviceOrientation = true;
private ResolutionProfile currentProfile;
void Start()
{
SelectOptimalProfile();
ApplyProfile(currentProfile);
if (adaptToDeviceOrientation)
{
StartCoroutine(MonitorOrientationChanges());
}
}
void SelectOptimalProfile()
{
float screenAspect = (float)Screen.width / Screen.height;
float screenDiagonal = Mathf.Sqrt(Screen.width * Screen.width + Screen.height * Screen.height);
// Select profile based on device characteristics
if (Application.isMobilePlatform)
{
if (screenAspect > 1.5f) // Tablet-like aspect ratio
{
currentProfile = GetProfileByName("Tablet");
}
else
{
currentProfile = GetProfileByName("Mobile");
}
}
else
{
if (screenAspect > 2f) // Ultrawide monitor
{
currentProfile = GetProfileByName("Ultrawide");
}
else
{
currentProfile = GetProfileByName("Desktop");
}
}
// Fallback to first profile if no match found
if (currentProfile == null && profiles.Length > 0)
{
currentProfile = profiles[0];
}
}
ResolutionProfile GetProfileByName(string name)
{
return System.Array.Find(profiles, p => p.profileName == name);
}
void ApplyProfile(ResolutionProfile profile)
{
if (profile == null) return;
canvasScaler.referenceResolution = profile.referenceResolution;
canvasScaler.matchWidthOrHeight = profile.matchWidthOrHeight;
canvasScaler.scaleFactor = profile.scaleFactor;
Debug.Log($"Applied UI profile: {profile.profileName} " +
$"({profile.referenceResolution.x}x{profile.referenceResolution.y})");
}
IEnumerator MonitorOrientationChanges()
{
ScreenOrientation lastOrientation = Screen.orientation;
while (true)
{
yield return new WaitForSeconds(0.5f);
if (Screen.orientation != lastOrientation)
{
lastOrientation = Screen.orientation;
SelectOptimalProfile();
ApplyProfile(currentProfile);
}
}
}
}Handling Extreme Aspect Ratios
Modern devices present increasingly diverse aspect ratios, from traditional 16:9 displays to ultrawide 21:9 monitors and tall mobile screens with 18:9 or even 20:9 ratios. Handling these extreme aspect ratios requires careful consideration of how UI elements should behave when the screen proportions differ significantly from your reference resolution.
public class AspectRatioHandler : MonoBehaviour
{
[SerializeField] private RectTransform safeAreaContainer;
[SerializeField] private RectTransform[] criticalUIElements;
[SerializeField] private float maxAspectRatio = 2.5f;
[SerializeField] private float minAspectRatio = 0.4f;
void Start()
{
HandleAspectRatio();
}
void HandleAspectRatio()
{
float currentAspect = (float)Screen.width / Screen.height;
// Handle ultrawide displays
if (currentAspect > maxAspectRatio)
{
ApplyUltrawideLayout();
}
// Handle very tall displays (modern mobile phones)
else if (currentAspect < minAspectRatio)
{
ApplyTallLayout();
}
// Apply safe area considerations for devices with notches or rounded corners
ApplySafeArea();
}
void ApplyUltrawideLayout()
{
// Center critical UI elements and add padding for ultrawide displays
foreach (var element in criticalUIElements)
{
var rectTransform = element.GetComponent<RectTransform>();
rectTransform.anchorMin = new Vector2(0.2f, rectTransform.anchorMin.y);
rectTransform.anchorMax = new Vector2(0.8f, rectTransform.anchorMax.y);
}
}
void ApplyTallLayout()
{
// Adjust vertical spacing for tall displays
foreach (var element in criticalUIElements)
{
var rectTransform = element.GetComponent<RectTransform>();
// Add more vertical padding to prevent UI crowding
rectTransform.offsetMin = new Vector2(rectTransform.offsetMin.x,
rectTransform.offsetMin.y + 20);
rectTransform.offsetMax = new Vector2(rectTransform.offsetMax.x,
rectTransform.offsetMax.y - 20);
}
}
void ApplySafeArea()
{
if (safeAreaContainer == null) return;
Rect safeArea = Screen.safeArea;
Vector2 anchorMin = safeArea.position;
Vector2 anchorMax = safeArea.position + safeArea.size;
anchorMin.x /= Screen.width;
anchorMin.y /= Screen.height;
anchorMax.x /= Screen.width;
anchorMax.y /= Screen.height;
safeAreaContainer.anchorMin = anchorMin;
safeAreaContainer.anchorMax = anchorMax;
}
}Responsive Layout Techniques with Anchors and Layout Groups
Creating truly responsive UIs in Unity extends beyond Canvas Scaler configuration to encompass sophisticated layout techniques that ensure UI elements maintain appropriate relationships and proportions across different screen configurations. Unity’s anchor system and Layout Groups provide the foundation for building flexible, adaptive interfaces that gracefully handle resolution variations.
Mastering the Anchor System
Unity’s anchor system represents one of the most powerful yet often misunderstood aspects of responsive UI design. Anchors define how UI elements position and scale themselves relative to their parent containers, providing the flexibility needed to create layouts that adapt intelligently to different screen sizes.
The key to effective anchor usage lies in understanding that anchors define both position and scaling behavior. When you set an element’s anchors to stretch across its parent, you’re not just positioning the element—you’re also defining how it should resize when the parent container changes size.
public class ResponsiveAnchorManager : MonoBehaviour
{
[System.Serializable]
public class AnchorConfiguration
{
public RectTransform targetElement;
public Vector2 mobileAnchorMin;
public Vector2 mobileAnchorMax;
public Vector2 desktopAnchorMin;
public Vector2 desktopAnchorMax;
public Vector2 mobileOffsetMin;
public Vector2 mobileOffsetMax;
public Vector2 desktopOffsetMin;
public Vector2 desktopOffsetMax;
}
[SerializeField] private AnchorConfiguration[] anchorConfigs;
[SerializeField] private float mobileAspectThreshold = 1.3f;
void Start()
{
ApplyResponsiveAnchors();
}
void ApplyResponsiveAnchors()
{
bool isMobileLayout = (float)Screen.width / Screen.height < mobileAspectThreshold;
foreach (var config in anchorConfigs)
{
if (config.targetElement == null) continue;
if (isMobileLayout)
{
config.targetElement.anchorMin = config.mobileAnchorMin;
config.targetElement.anchorMax = config.mobileAnchorMax;
config.targetElement.offsetMin = config.mobileOffsetMin;
config.targetElement.offsetMax = config.mobileOffsetMax;
}
else
{
config.targetElement.anchorMin = config.desktopAnchorMin;
config.targetElement.anchorMax = config.desktopAnchorMax;
config.targetElement.offsetMin = config.desktopOffsetMin;
config.targetElement.offsetMax = config.desktopOffsetMax;
}
}
}
// Method to smoothly transition between anchor configurations
public void TransitionToConfiguration(bool useMobileLayout, float duration = 0.3f)
{
StartCoroutine(SmoothAnchorTransition(useMobileLayout, duration));
}
IEnumerator SmoothAnchorTransition(bool useMobileLayout, float duration)
{
float elapsed = 0f;
// Store initial values for interpolation
var initialConfigs = new List<(Vector2 anchorMin, Vector2 anchorMax, Vector2 offsetMin, Vector2 offsetMax)>();
foreach (var config in anchorConfigs)
{
if (config.targetElement == null) continue;
initialConfigs.Add((
config.targetElement.anchorMin,
config.targetElement.anchorMax,
config.targetElement.offsetMin,
config.targetElement.offsetMax
));
}
while (elapsed < duration)
{
float t = elapsed / duration;
t = Mathf.SmoothStep(0f, 1f, t); // Smooth interpolation curve
for (int i = 0; i < anchorConfigs.Length; i++)
{
var config = anchorConfigs[i];
if (config.targetElement == null) continue;
var initial = initialConfigs[i];
Vector2 targetAnchorMin = useMobileLayout ? config.mobileAnchorMin : config.desktopAnchorMin;
Vector2 targetAnchorMax = useMobileLayout ? config.mobileAnchorMax : config.desktopAnchorMax;
Vector2 targetOffsetMin = useMobileLayout ? config.mobileOffsetMin : config.desktopOffsetMin;
Vector2 targetOffsetMax = useMobileLayout ? config.mobileOffsetMax : config.desktopOffsetMax;
config.targetElement.anchorMin = Vector2.Lerp(initial.anchorMin, targetAnchorMin, t);
config.targetElement.anchorMax = Vector2.Lerp(initial.anchorMax, targetAnchorMax, t);
config.targetElement.offsetMin = Vector2.Lerp(initial.offsetMin, targetOffsetMin, t);
config.targetElement.offsetMax = Vector2.Lerp(initial.offsetMax, targetOffsetMax, t);
}
elapsed += Time.deltaTime;
yield return null;
}
// Ensure final values are exactly correct
ApplyResponsiveAnchors();
}
}Layout Groups for Dynamic Content
Unity’s Layout Group components provide automated solutions for arranging UI elements in responsive patterns. These components excel at handling dynamic content where the number or size of UI elements might change during runtime, such as inventory systems, leaderboards, or dialogue interfaces.
The Horizontal Layout Group, Vertical Layout Group, and Grid Layout Group each serve different organizational needs while providing consistent spacing and alignment across different screen resolutions. Understanding when and how to use each type is crucial for creating professional, polished interfaces.
public class AdaptiveLayoutManager : MonoBehaviour
{
[SerializeField] private GridLayoutGroup gridLayout;
[SerializeField] private VerticalLayoutGroup verticalLayout;
[SerializeField] private HorizontalLayoutGroup horizontalLayout;
[Header("Grid Layout Settings")]
[SerializeField] private Vector2 mobileGridCellSize = new Vector2(100, 100);
[SerializeField] private Vector2 desktopGridCellSize = new Vector2(120, 120);
[SerializeField] private Vector2 mobileGridSpacing = new Vector2(10, 10);
[SerializeField] private Vector2 desktopGridSpacing = new Vector2(15, 15);
[Header("Responsive Behavior")]
[SerializeField] private int mobileColumnsMax = 3;
[SerializeField] private int desktopColumnsMax = 5;
[SerializeField] private bool adaptToOrientation = true;
void Start()
{
ConfigureLayoutGroups();
if (adaptToOrientation)
{
StartCoroutine(MonitorScreenChanges());
}
}
void ConfigureLayoutGroups()
{
bool isMobileLayout = Application.isMobilePlatform ||
(float)Screen.width / Screen.height < 1.3f;
if (gridLayout != null)
{
ConfigureGridLayout(isMobileLayout);
}
if (verticalLayout != null)
{
ConfigureVerticalLayout(isMobileLayout);
}
if (horizontalLayout != null)
{
ConfigureHorizontalLayout(isMobileLayout);
}
}
void ConfigureGridLayout(bool isMobileLayout)
{
gridLayout.cellSize = isMobileLayout ? mobileGridCellSize : desktopGridCellSize;
gridLayout.spacing = isMobileLayout ? mobileGridSpacing : desktopGridSpacing;
// Adjust constraint count based on available space
int maxColumns = isMobileLayout ? mobileColumnsMax : desktopColumnsMax;
gridLayout.constraint = GridLayoutGroup.Constraint.FixedColumnCount;
gridLayout.constraintCount = maxColumns;
// Calculate optimal cell size based on available width
RectTransform rectTransform = gridLayout.GetComponent<RectTransform>();
float availableWidth = rectTransform.rect.width -
(gridLayout.padding.left + gridLayout.padding.right);
float totalSpacing = gridLayout.spacing.x * (maxColumns - 1);
float optimalCellWidth = (availableWidth - totalSpacing) / maxColumns;
if (optimalCellWidth > 0 && optimalCellWidth < gridLayout.cellSize.x)
{
gridLayout.cellSize = new Vector2(optimalCellWidth,
optimalCellWidth * (gridLayout.cellSize.y / gridLayout.cellSize.x));
}
}
void ConfigureVerticalLayout(bool isMobileLayout)
{
float spacing = isMobileLayout ? 10f : 15f;
verticalLayout.spacing = spacing;
// Adjust padding for different screen sizes
int padding = isMobileLayout ? 20 : 30;
verticalLayout.padding = new RectOffset(padding, padding, padding, padding);
// Configure child force expand settings
verticalLayout.childForceExpandWidth = true;
verticalLayout.childForceExpandHeight = false;
verticalLayout.childControlWidth = true;
verticalLayout.childControlHeight = true;
}
void ConfigureHorizontalLayout(bool isMobileLayout)
{
float spacing = isMobileLayout ? 8f : 12f;
horizontalLayout.spacing = spacing;
// Adjust padding for different screen sizes
int padding = isMobileLayout ? 15 : 25;
horizontalLayout.padding = new RectOffset(padding, padding, padding, padding);
// Configure child force expand settings
horizontalLayout.childForceExpandWidth = false;
horizontalLayout.childForceExpandHeight = true;
horizontalLayout.childControlWidth = true;
horizontalLayout.childControlHeight = true;
}
IEnumerator MonitorScreenChanges()
{
Vector2 lastScreenSize = new Vector2(Screen.width, Screen.height);
ScreenOrientation lastOrientation = Screen.orientation;
while (true)
{
yield return new WaitForSeconds(0.5f);
Vector2 currentScreenSize = new Vector2(Screen.width, Screen.height);
if (currentScreenSize != lastScreenSize || Screen.orientation != lastOrientation)
{
lastScreenSize = currentScreenSize;
lastOrientation = Screen.orientation;
// Delay to ensure screen change is complete
yield return new WaitForSeconds(0.1f);
ConfigureLayoutGroups();
}
}
}
}Platform-Specific Considerations and Safe Areas
Modern mobile devices introduce additional complexity through features like notches, rounded corners, and gesture areas that can interfere with UI placement. Handling these platform-specific considerations requires understanding both Unity’s built-in safe area support and implementing custom solutions for edge cases.
Safe Area Implementation
Unity’s Screen.safeArea property provides essential information about the usable screen area, excluding system UI elements like status bars, notches, and home indicators. Properly implementing safe area support ensures that critical UI elements remain accessible and visually appealing across all device configurations.
public class SafeAreaManager : MonoBehaviour
{
[SerializeField] private RectTransform safeAreaTransform;
[SerializeField] private bool adaptToSafeArea = true;
[SerializeField] private bool debugSafeArea = false;
[SerializeField] private float additionalPadding = 10f;
private Rect lastSafeArea = new Rect(0, 0, 0, 0);
private Vector2Int lastScreenSize = new Vector2Int(0, 0);
private ScreenOrientation lastOrientation = ScreenOrientation.Unknown;
void Start()
{
if (adaptToSafeArea)
{
ApplySafeArea();
StartCoroutine(MonitorSafeAreaChanges());
}
}
void ApplySafeArea()
{
if (safeAreaTransform == null) return;
Rect safeArea = Screen.safeArea;
// Convert safe area rectangle to anchor coordinates
Vector2 anchorMin = safeArea.position;
Vector2 anchorMax = safeArea.position + safeArea.size;
anchorMin.x /= Screen.width;
anchorMin.y /= Screen.height;
anchorMax.x /= Screen.width;
anchorMax.y /= Screen.height;
// Apply additional padding if specified
if (additionalPadding > 0)
{
float paddingX = additionalPadding / Screen.width;
float paddingY = additionalPadding / Screen.height;
anchorMin.x += paddingX;
anchorMin.y += paddingY;
anchorMax.x -= paddingX;
anchorMax.y -= paddingY;
}
safeAreaTransform.anchorMin = anchorMin;
safeAreaTransform.anchorMax = anchorMax;
if (debugSafeArea)
{
Debug.Log($"Safe Area Applied: {safeArea} -> Anchors: {anchorMin} to {anchorMax}");
}
lastSafeArea = safeArea;
lastScreenSize = new Vector2Int(Screen.width, Screen.height);
lastOrientation = Screen.orientation;
}
IEnumerator MonitorSafeAreaChanges()
{
while (true)
{
yield return new WaitForSeconds(0.5f);
if (HasSafeAreaChanged())
{
ApplySafeArea();
}
}
}
bool HasSafeAreaChanged()
{
return Screen.safeArea != lastSafeArea ||
Screen.width != lastScreenSize.x ||
Screen.height != lastScreenSize.y ||
Screen.orientation != lastOrientation;
}
// Method to get safe area information for other components
public Rect GetCurrentSafeArea()
{
return Screen.safeArea;
}
// Method to check if device has safe area constraints
public bool HasSafeAreaConstraints()
{
Rect safeArea = Screen.safeArea;
return safeArea.x > 0 || safeArea.y > 0 ||
safeArea.width < Screen.width || safeArea.height < Screen.height;
}
}Platform-Specific UI Adaptations
Different platforms have unique UI conventions and technical requirements that affect how screen resolution and scaling should be handled. iOS devices with notches require different considerations than Android devices with software navigation buttons, while desktop platforms offer different interaction paradigms that influence optimal UI sizing.
public class PlatformSpecificUIAdapter : MonoBehaviour
{
[System.Serializable]
public class PlatformUISettings
{
public RuntimePlatform platform;
public float uiScaleMultiplier = 1f;
public Vector2 minimumButtonSize = new Vector2(44, 44);
public float touchTargetPadding = 8f;
public bool useNativeScaling = false;
}
[SerializeField] private PlatformUISettings[] platformSettings;
[SerializeField] private Button[] criticalButtons;
[SerializeField] private RectTransform[] touchTargets;
private PlatformUISettings currentSettings;
void Start()
{
DetectAndApplyPlatformSettings();
}
void DetectAndApplyPlatformSettings()
{
currentSettings = GetSettingsForCurrentPlatform();
if (currentSettings != null)
{
ApplyPlatformSpecificSettings();
}
else
{
Debug.LogWarning($"No platform settings found for {Application.platform}");
ApplyDefaultSettings();
}
}
PlatformUISettings GetSettingsForCurrentPlatform()
{
return System.Array.Find(platformSettings,
settings => settings.platform == Application.platform);
}
void ApplyPlatformSpecificSettings()
{
// Apply platform-specific button sizing
foreach (var button in criticalButtons)
{
if (button == null) continue;
RectTransform buttonRect = button.GetComponent<RectTransform>();
Vector2 currentSize = buttonRect.sizeDelta;
// Ensure minimum button size for touch platforms
if (Application.isMobilePlatform)
{
currentSize.x = Mathf.Max(currentSize.x, currentSettings.minimumButtonSize.x);
currentSize.y = Mathf.Max(currentSize.y, currentSettings.minimumButtonSize.y);
buttonRect.sizeDelta = currentSize;
}
}
// Apply touch target padding for mobile platforms
if (Application.isMobilePlatform && currentSettings.touchTargetPadding > 0)
{
foreach (var target in touchTargets)
{
if (target == null) continue;
// Add invisible padding around touch targets
var padding = target.gameObject.GetComponent<Button>() ?? target.gameObject.AddComponent<Button>();
padding.transition = Selectable.Transition.None; // Invisible button for touch area
RectTransform paddingRect = padding.GetComponent<RectTransform>();
paddingRect.offsetMin -= Vector2.one * currentSettings.touchTargetPadding;
paddingRect.offsetMax += Vector2.one * currentSettings.touchTargetPadding;
}
}
// Apply platform-specific scaling
if (currentSettings.uiScaleMultiplier != 1f)
{
Canvas canvas = FindObjectOfType<Canvas>();
if (canvas != null)
{
CanvasScaler scaler = canvas.GetComponent<CanvasScaler>();
if (scaler != null)
{
scaler.scaleFactor *= currentSettings.uiScaleMultiplier;
}
}
}
}
void ApplyDefaultSettings()
{
// Apply conservative default settings
foreach (var button in criticalButtons)
{
if (button == null) continue;
RectTransform buttonRect = button.GetComponent<RectTransform>();
Vector2 currentSize = buttonRect.sizeDelta;
// Use larger default sizes for unknown platforms
currentSize.x = Mathf.Max(currentSize.x, 60f);
currentSize.y = Mathf.Max(currentSize.y, 60f);
buttonRect.sizeDelta = currentSize;
}
}
}Performance Optimization for Multi-Resolution UIs
Creating responsive UIs that work across multiple resolutions requires careful attention to performance implications. Poorly optimized UI systems can significantly impact frame rates, especially on mobile devices where GPU fill rate and memory bandwidth are limited. Understanding and implementing performance optimization techniques ensures that your responsive UI enhances rather than detracts from the overall game experience.
Efficient Canvas Management
One of the most critical aspects of UI performance optimization involves strategic Canvas organization. Unity rebuilds Canvas geometry whenever any element within that Canvas changes, making it essential to separate static and dynamic UI elements into different Canvas hierarchies.
public class PerformantCanvasManager : MonoBehaviour
{
[System.Serializable]
public class CanvasLayer
{
public string layerName;
public Canvas canvas;
public CanvasGroup canvasGroup;
public bool isStatic = false;
public bool usePixelPerfect = false;
public int sortingOrder = 0;
}
[SerializeField] private CanvasLayer[] canvasLayers;
[SerializeField] private bool optimizeForMobile = true;
[SerializeField] private bool enableCanvasGroupOptimization = true;
private Dictionary<string, CanvasLayer> layerLookup;
void Start()
{
InitializeCanvasLayers();
OptimizeCanvasSettings();
}
void InitializeCanvasLayers()
{
layerLookup = new Dictionary<string, CanvasLayer>();
foreach (var layer in canvasLayers)
{
if (layer.canvas == null) continue;
layerLookup[layer.layerName] = layer;
// Configure canvas settings based on layer properties
ConfigureCanvasLayer(layer);
}
}
void ConfigureCanvasLayer(CanvasLayer layer)
{
Canvas canvas = layer.canvas;
// Set sorting order
canvas.sortingOrder = layer.sortingOrder;
// Configure pixel perfect rendering
canvas.pixelPerfect = layer.usePixelPerfect && !optimizeForMobile;
// Optimize static canvases
if (layer.isStatic)
{
// Static canvases should use World Space for better batching
canvas.renderMode = RenderMode.WorldSpace;
canvas.worldCamera = Camera.main;
// Disable GraphicRaycaster for static elements
GraphicRaycaster raycaster = canvas.GetComponent<GraphicRaycaster>();
if (raycaster != null)
{
raycaster.enabled = false;
}
}
// Configure CanvasGroup for efficient alpha changes
if (enableCanvasGroupOptimization && layer.canvasGroup != null)
{
layer.canvasGroup.ignoreParentGroups = true;
layer.canvasGroup.blocksRaycasts = !layer.isStatic;
}
}
void OptimizeCanvasSettings()
{
if (optimizeForMobile)
{
// Disable expensive features on mobile
foreach (var layer in canvasLayers)
{
if (layer.canvas == null) continue;
// Disable pixel perfect on mobile for better performance
layer.canvas.pixelPerfect = false;
// Reduce overdraw by disabling unnecessary raycast targets
OptimizeRaycastTargets(layer.canvas.transform);
}
}
}
void OptimizeRaycastTargets(Transform parent)
{
foreach (Transform child in parent)
{
Graphic graphic = child.GetComponent<Graphic>();
if (graphic != null && !IsInteractiveElement(child))
{
graphic.raycastTarget = false;
}
OptimizeRaycastTargets(child);
}
}
bool IsInteractiveElement(Transform element)
{
return element.GetComponent<Button>() != null ||
element.GetComponent<Toggle>() != null ||
element.GetComponent<Slider>() != null ||
element.GetComponent<Scrollbar>() != null ||
element.GetComponent<Dropdown>() != null ||
element.GetComponent<InputField>() != null;
}
// Public methods for runtime canvas management
public void SetLayerVisibility(string layerName, bool visible)
{
if (layerLookup.TryGetValue(layerName, out CanvasLayer layer))
{
if (layer.canvasGroup != null)
{
layer.canvasGroup.alpha = visible ? 1f : 0f;
layer.canvasGroup.interactable = visible;
layer.canvasGroup.blocksRaycasts = visible && !layer.isStatic;
}
else
{
layer.canvas.gameObject.SetActive(visible);
}
}
}
public void SetLayerAlpha(string layerName, float alpha)
{
if (layerLookup.TryGetValue(layerName, out CanvasLayer layer) &&
layer.canvasGroup != null)
{
layer.canvasGroup.alpha = alpha;
}
}
// Method to force canvas rebuild for static elements when needed
public void RefreshStaticCanvas(string layerName)
{
if (layerLookup.TryGetValue(layerName, out CanvasLayer layer) &&
layer.isStatic)
{
Canvas.ForceUpdateCanvases();
}
}
}Texture and Asset Optimization
UI textures and sprites require special consideration for multi-resolution support. Implementing efficient texture streaming and resolution-appropriate asset loading ensures optimal memory usage and rendering performance across different device capabilities.
public class ResponsiveAssetManager : MonoBehaviour
{
[System.Serializable]
public class ResolutionTier
{
public string tierName;
public int minScreenWidth;
public int maxScreenWidth;
public float textureQualityMultiplier = 1f;
public TextureFormat preferredFormat = TextureFormat.RGBA32;
public bool useCompression = true;
}
[SerializeField] private ResolutionTier[] resolutionTiers;
[SerializeField] private Image[] dynamicImages;
[SerializeField] private bool enableRuntimeOptimization = true;
private ResolutionTier currentTier;
private Dictionary<Sprite, Sprite[]> spriteVariants;
void Start()
{
DetermineResolutionTier();
InitializeSpriteVariants();
if (enableRuntimeOptimization)
{
OptimizeUIAssets();
}
}
void DetermineResolutionTier()
{
int screenWidth = Screen.width;
currentTier = System.Array.Find(resolutionTiers, tier =>
screenWidth >= tier.minScreenWidth && screenWidth <= tier.maxScreenWidth);
if (currentTier == null && resolutionTiers.Length > 0)
{
// Default to highest tier if no match found
currentTier = resolutionTiers[resolutionTiers.Length - 1];
}
Debug.Log($"Selected resolution tier: {currentTier?.tierName} for screen width: {screenWidth}");
}
void InitializeSpriteVariants()
{
spriteVariants = new Dictionary<Sprite, Sprite[]>();
// This would typically load different resolution variants of sprites
// For demonstration, we'll show the structure
foreach (var image in dynamicImages)
{
if (image.sprite != null)
{
// In a real implementation, you would load different resolution variants
// spriteVariants[image.sprite] = LoadSpriteVariants(image.sprite.name);
}
}
}
void OptimizeUIAssets()
{
if (currentTier == null) return;
foreach (var image in dynamicImages)
{
if (image == null || image.sprite == null) continue;
OptimizeImageComponent(image);
}
}
void OptimizeImageComponent(Image image)
{
// Adjust sprite based on current resolution tier
if (spriteVariants.TryGetValue(image.sprite, out Sprite[] variants))
{
int variantIndex = GetOptimalVariantIndex(variants.Length);
if (variantIndex < variants.Length && variants[variantIndex] != null)
{
image.sprite = variants[variantIndex];
}
}
// Optimize image settings based on tier
if (currentTier.textureQualityMultiplier < 1f)
{
// For lower-end devices, we might reduce texture quality
// This would typically involve loading lower-resolution variants
}
}
int GetOptimalVariantIndex(int availableVariants)
{
if (currentTier == null) return 0;
// Map resolution tier to sprite variant index
float tierRatio = (float)Screen.width / 1920f; // Assuming 1920 as reference width
int variantIndex = Mathf.RoundToInt(tierRatio * (availableVariants - 1));
return Mathf.Clamp(variantIndex, 0, availableVariants - 1);
}
// Method to dynamically load appropriate sprite variant
public Sprite LoadOptimalSprite(string spriteName)
{
if (currentTier == null) return null;
// This would implement actual sprite loading logic
// For now, return null as placeholder
string variantPath = $"UI/Sprites/{currentTier.tierName}/{spriteName}";
return Resources.Load<Sprite>(variantPath);
}
// Method to preload sprites for current resolution tier
public IEnumerator PreloadSpritesForTier()
{
if (currentTier == null) yield break;
string tierPath = $"UI/Sprites/{currentTier.tierName}";
Sprite[] tierSprites = Resources.LoadAll<Sprite>(tierPath);
foreach (var sprite in tierSprites)
{
// Preload sprite texture
if (sprite.texture != null)
{
// Force texture loading
var pixels = sprite.texture.GetPixels();
}
yield return null; // Spread loading across frames
}
Debug.Log($"Preloaded {tierSprites.Length} sprites for tier: {currentTier.tierName}");
}
}Testing and Debugging Multi-Resolution UIs
Comprehensive testing across different resolutions and device configurations is essential for ensuring your responsive UI system works correctly in all scenarios. Unity provides several tools and techniques for testing multi-resolution UIs, but implementing custom debugging and validation systems can significantly streamline the development process.
Automated UI Testing Framework
Creating an automated testing framework for UI responsiveness helps catch issues early and ensures consistent behavior across different screen configurations. This framework should validate layout integrity, element accessibility, and visual consistency across resolution changes.
public class UIResponsivenessValidator : MonoBehaviour
{
[System.Serializable]
public class TestResolution
{
public string name;
public int width;
public int height;
public bool isPortrait;
}
[System.Serializable]
public class UITestCase
{
public string testName;
public RectTransform targetElement;
public Vector2 expectedMinSize;
public Vector2 expectedMaxSize;
public bool mustBeVisible;
public bool mustBeInteractable;
}
[SerializeField] private TestResolution[] testResolutions;
[SerializeField] private UITestCase[] testCases;
[SerializeField] private bool runTestsOnStart = false;
[SerializeField] private bool logDetailedResults = true;
private List<string> testResults;
private Canvas testCanvas;
void Start()
{
testCanvas = FindObjectOfType<Canvas>();
testResults = new List<string>();
if (runTestsOnStart)
{
StartCoroutine(RunAllTests());
}
}
public IEnumerator RunAllTests()
{
testResults.Clear();
foreach (var resolution in testResolutions)
{
yield return StartCoroutine(TestResolution(resolution));
}
GenerateTestReport();
}
IEnumerator TestResolution(TestResolution resolution)
{
string resolutionName = $"{resolution.name} ({resolution.width}x{resolution.height})";
testResults.Add($"\n=== Testing Resolution: {resolutionName} ===");
// Set test resolution
Screen.SetResolution(resolution.width, resolution.height, false);
yield return new WaitForEndOfFrame(); // Wait for resolution change
yield return new WaitForEndOfFrame(); // Wait for UI update
// Force canvas update
if (testCanvas != null)
{
Canvas.ForceUpdateCanvases();
}
// Run test cases for this resolution
foreach (var testCase in testCases)
{
RunTestCase(testCase, resolutionName);
}
yield return new WaitForSeconds(0.1f); // Brief pause between resolutions
}
void RunTestCase(UITestCase testCase, string resolutionName)
{
if (testCase.targetElement == null)
{
LogTestResult(testCase.testName, "SKIP", "Target element is null", resolutionName);
return;
}
bool passed = true;
List<string> issues = new List<string>();
// Test element size
Vector2 elementSize = testCase.targetElement.rect.size;
if (elementSize.x < testCase.expectedMinSize.x || elementSize.y < testCase.expectedMinSize.y)
{
passed = false;
issues.Add($"Size too small: {elementSize} < {testCase.expectedMinSize}");
}
if (elementSize.x > testCase.expectedMaxSize.x || elementSize.y > testCase.expectedMaxSize.y)
{
passed = false;
issues.Add($"Size too large: {elementSize} > {testCase.expectedMaxSize}");
}
// Test visibility
if (testCase.mustBeVisible)
{
bool isVisible = IsElementVisible(testCase.targetElement);
if (!isVisible)
{
passed = false;
issues.Add("Element is not visible");
}
}
// Test interactability
if (testCase.mustBeInteractable)
{
bool isInteractable = IsElementInteractable(testCase.targetElement);
if (!isInteractable)
{
passed = false;
issues.Add("Element is not interactable");
}
}
// Test screen bounds
if (!IsElementWithinScreenBounds(testCase.targetElement))
{
passed = false;
issues.Add("Element extends outside screen bounds");
}
string result = passed ? "PASS" : "FAIL";
string details = issues.Count > 0 ? string.Join("; ", issues) : "All checks passed";
LogTestResult(testCase.testName, result, details, resolutionName);
}
bool IsElementVisible(RectTransform element)
{
// Check if element is active and has non-zero size
if (!element.gameObject.activeInHierarchy) return false;
if (element.rect.width <= 0 || element.rect.height <= 0) return false;
// Check if element has visible graphic components
Graphic graphic = element.GetComponent<Graphic>();
if (graphic != null && graphic.color.a <= 0) return false;
return true;
}
bool IsElementInteractable(RectTransform element)
{
// Check for interactive components
Selectable selectable = element.GetComponent<Selectable>();
if (selectable != null) return selectable.interactable;
// Check for GraphicRaycaster accessibility
GraphicRaycaster raycaster = element.GetComponentInParent<GraphicRaycaster>();
if (raycaster == null || !raycaster.enabled) return false;
return true;
}
bool IsElementWithinScreenBounds(RectTransform element)
{
Vector3[] corners = new Vector3[4];
element.GetWorldCorners(corners);
Camera uiCamera = testCanvas.worldCamera ?? Camera.main;
if (uiCamera == null) return true; // Can't test without camera
foreach (var corner in corners)
{
Vector3 screenPoint = uiCamera.WorldToScreenPoint(corner);
if (screenPoint.x < 0 || screenPoint.x > Screen.width ||
screenPoint.y < 0 || screenPoint.y > Screen.height)
{
return false;
}
}
return true;
}
void LogTestResult(string testName, string result, string details, string resolution)
{
string logEntry = $"[{result}] {testName}: {details}";
testResults.Add(logEntry);
if (logDetailedResults)
{
Debug.Log($"{resolution} - {logEntry}");
}
}
void GenerateTestReport()
{
int totalTests = 0;
int passedTests = 0;
foreach (var result in testResults)
{
if (result.Contains("[PASS]"))
{
passedTests++;
totalTests++;
}
else if (result.Contains("[FAIL]"))
{
totalTests++;
}
}
string report = $"\n=== UI Responsiveness Test Report ===\n" +
$"Total Tests: {totalTests}\n" +
$"Passed: {passedTests}\n" +
$"Failed: {totalTests - passedTests}\n" +
$"Success Rate: {(float)passedTests / totalTests * 100:F1}%\n\n" +
string.Join("\n", testResults);
Debug.Log(report);
// Optionally save report to file
SaveTestReport(report);
}
void SaveTestReport(string report)
{
string fileName = $"UI_Test_Report_{System.DateTime.Now:yyyyMMdd_HHmmss}.txt";
string filePath = System.IO.Path.Combine(Application.persistentDataPath, fileName);
try
{
System.IO.File.WriteAllText(filePath, report);
Debug.Log($"Test report saved to: {filePath}");
}
catch (System.Exception e)
{
Debug.LogError($"Failed to save test report: {e.Message}");
}
}
// Public method to run tests manually
[ContextMenu("Run UI Tests")]
public void RunTestsManually()
{
StartCoroutine(RunAllTests());
}
}Conclusion
Mastering screen resolution and UI scaling in Unity requires a comprehensive understanding of the Canvas system, responsive design principles, and platform-specific considerations. The techniques and strategies outlined in this guide provide a solid foundation for creating professional, adaptable user interfaces that deliver consistent experiences across the diverse landscape of modern gaming devices.
The key to successful responsive UI design lies in planning for scalability from the beginning of your project. By implementing proper Canvas Scaler configurations, utilizing Unity’s anchor system effectively, and considering performance implications throughout the development process, you can create interfaces that not only look great but also perform efficiently across all target platforms.
Remember that responsive UI design is an iterative process. Regular testing across different resolutions and device configurations, combined with user feedback and performance monitoring, will help you refine and optimize your UI systems over time. The investment in creating truly responsive interfaces pays dividends in user satisfaction, broader device compatibility, and reduced maintenance overhead.
As gaming platforms continue to evolve and new device form factors emerge, the principles and techniques covered in this guide will serve as a solid foundation for adapting to future challenges. Whether you’re developing for mobile, desktop, console, or emerging platforms like VR and AR, understanding how to handle screen resolution and UI scaling effectively will ensure your games provide exceptional user experiences regardless of the target device.
Start implementing these responsive UI techniques in your current projects, and you’ll quickly see the benefits of interfaces that adapt gracefully to any screen size while maintaining both visual appeal and functional usability.
Call to Action: Ready to transform your Unity UI into a responsive, professional interface? Start by implementing Canvas Scaler best practices in your current project and share your results with the Unity community!
